Understanding the Different Types of Transformers: A Complete Guide for Industrial and Commercial Applications

Every modern power system relies on transformers. Whether electricity travels hundreds of miles across the grid or is delivered to power sensitive equipment nearby, transformers enable efficient voltage conversion at each stage of the power system. To protect equipment and ensure energy flows safely and efficiently, transformers adjust voltage levels.

Yet not all transformers are the same. From massive power-grid transformers to compact dry-type units, each serves a different purpose. Understanding the different types of transformers is beneficial for engineers, facility managers, and industries planning electrical infrastructure or equipment upgrades.

In this guide, we’ll walk you through the most common transformer types, how they work, and which applications they serve best, based on MGM Transformers’ experience designing reliable power solutions.

What Is a Transformer and How Does It Work?

A transformer is an electrical device that takes a given input voltage and converts it to a different output voltage. This conversion can either be an increase (step-up) or a decrease (step-down) in voltage.

How do transformers work?

Transformers operate on Faraday’s Law of Electromagnetic Induction: “when alternating current (AC) flows through a coil (the primary winding), it generates a magnetic field that induces voltage in another coil (the secondary winding)”. This process allows for efficient power transfer in modern transformers, though small energy losses occur as heat in the core and windings.

Transformers are made up of the following key components:

Core: provides a path for magnetic flux
Windings: conductors that carry current
Insulation and cooling systems: manage temperatures, helping to prevent dielectric breakdowns

Together, these components make transformers reliable, efficient, and crucial to modern electrical systems.

Main Categories of Transformers: Step-Up and Step-Down

Step-up transformers

A step-up transformer increases voltage from the primary winding to the secondary winding as it has more turns in the secondary winding than in the primary winding. These transformers are crucial at power generation stations, where electricity is transmitted at high voltages (above 230 kV) to reduce energy loss as it travels over long distances.

For example, in a wind farm or solar facility, step-up transformers increase generator output to transmission levels.

Step-down transformers

A step-down transformer does what its name implies: it lowers voltage for safe local distribution. These transformers are commonly found in industrial plants, residential neighborhoods, and commercial buildings.

For instance, a step-down transformer may reduce 33 kV transmission voltage to 480 V or 240 V for building systems or machinery. MGM Transformers’ low-voltage dry-type transformers are an ideal choice for indoor applications due to their compact design, reduced fire risk, and overall safety.

Power Transformers vs. Distribution Transformers

Power transformers are designed for bulk energy transmission and handle high voltages and large power flows. They connect generation stations to transmission networks and operate at full load continuously.

Alternatively, distribution transformers provide localized power delivery. They step-down transmission voltages to end-user levels, ensuring safe and efficient energy in residential, commercial, and industrial facilities. These transformers are designed to perform under fluctuating load conditions while smaller and quieter.

Feature	Distribution Transformers	Power Transformers
Primary use	End-user supply	Transmission networks
Voltage range	Below 33 kV	Typically above 33 kV
Load conditions	Operate efficiently at partial load	Operate at or near full load continuously
Cooling method	Liquid-filled or dry-type	Primarily liquid-immersed
Installation site	Commercial buildings, industries, neighborhoods	Substations, generating stations

MGM Transformers medium and high-voltage transformers are built to comply with IEEE standards and DOE efficiency standards, ensuring they operate with maximum efficiency under full-load conditions.

Special Purpose Transformers

While standard step-up and step-down transformers are commonly preferred, specialized designs serve unique industrial or instrumentation applications.

1. Triplex Transformers

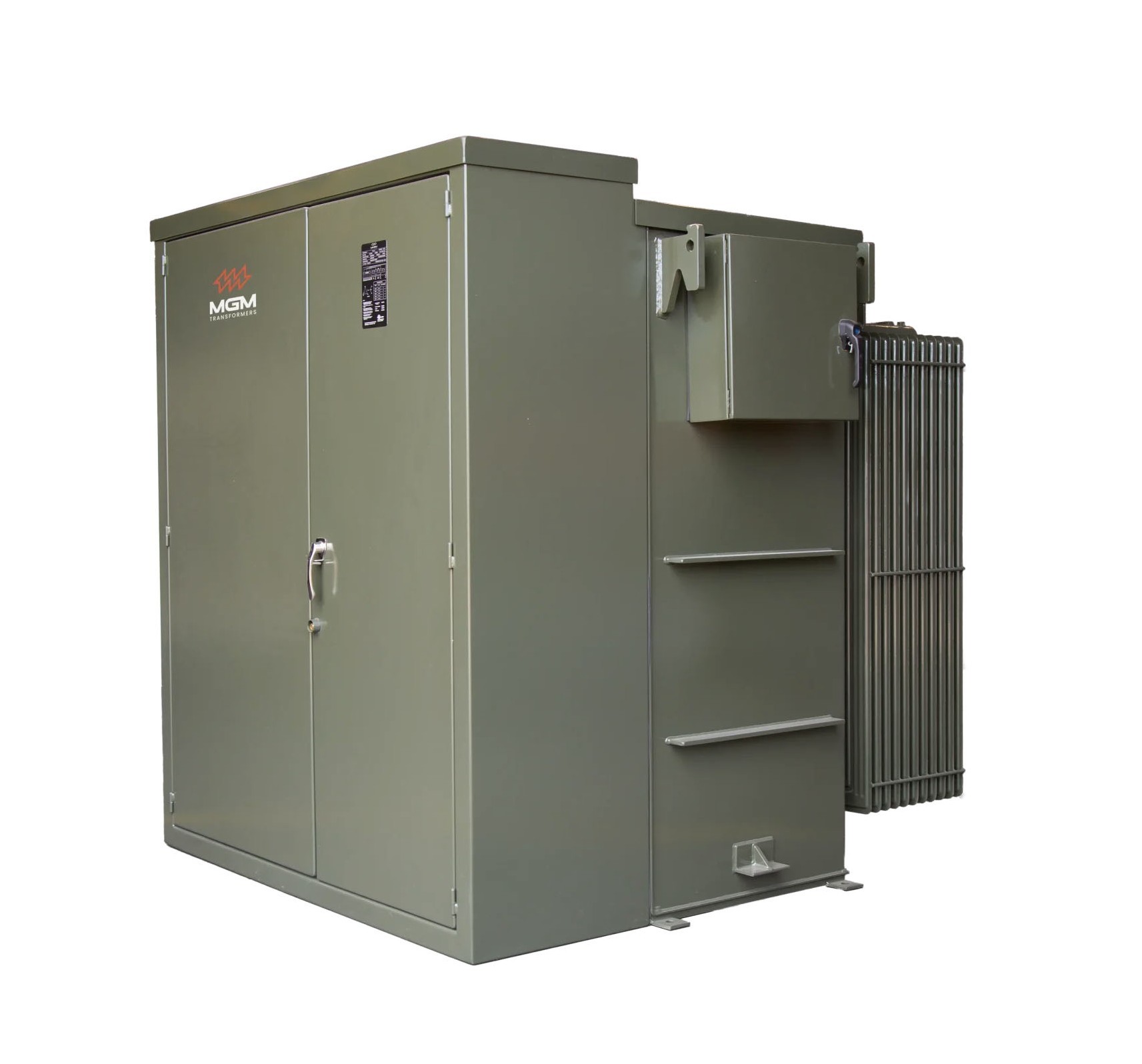

Triplex Transformers integrate three single-phase transformers into one factory-assembled unit designed for applications with installation and transportation constraints. While the configuration may increase the overall footprint compared to a single three-phase transformer, it provides significant advantages in handling and delivery. Each section can be transported, rigged, and installed more easily, making it especially suitable for high-rise buildings, data centers, and sites with strict weight or access limitations.

2. Solar Power Transformers

Solar Power Transformers are purpose-built for photovoltaic (PV) and renewable energy applications, ensuring reliable voltage conversion between solar arrays and grid interconnection points. These transformers are engineered for high harmonic loads, bi-directional power flow, and fluctuating output conditions. They have been manufactured with high-temperature insulations, corrosion-resistant enclosures, and precision-tuned core designs for optimal performance in outdoor installations.

3. Grounding Transformers

Grounding Transformers provide a stable neutral reference point for ungrounded or delta-connected systems, facilitating fault detection and current protection. These transformers are available with zig-zag or wye-delta configurations, purpose-built for industrial plants, renewable energy installations, and substation grounding applications where system reliability and personnel safety are vital.

Transformers by MGM Transformers are engineered, tested, and certified in accordance with ANSI, IEEE, NEMA, and DOE standards, ensuring maximum safety, reliability, and energy efficiency.

Construction-Based Classification: Liquid Immersed vs. Dry-Type Transformers

Transformers can also be categorized by their insulation and cooling methods, which determine where and how they operate. The two main construction types are oil-filled and dry-type units.

Aspect	Liquid Immersed	Dry-Type
Cooling medium	Liquid	Air or gas
Maintenance	Moderate	Low
Fire risk	Moderate	Minimal
Location	Outdoor	Indoor
Lifespan	25-35 years	20-30 years

Liquid-filled transformers

Liquid-filled transformers used ester-based or mineral oil for both cooling and insulation. They offer superior heat dissipation and dielectric (the oil’s ability to withstand high electrical stress) properties, making them ideal for utility substations and outdoor insulation applications. These transformers require regular oil sampling and maintenance and must comply with strict fire safety requirements, such as NFPA 850.

Dry-type transformers

Alternatively, dry-type transformers rely on air circulation for cooling and epoxy resin encapsulation or impregnation for insulation. These transformers offer a non-flammable, safer, and more eco-friendly option. Making them ideal for indoor use, such as high-rise buildings, hospitals, and manufacturing plants. MGM’s Vacuum Pressure Impregnated (VPI) dry-type unit provides exceptional thermal and electrical performance while adhering to DOE 2016 efficiency standards.

Industrial and Commercial Applications

Transformers play an integral role across every sector of the economy, ensuring efficient, reliable, and safe power delivery in every industry. Each transformer type serves a specific purpose, supporting vital systems in renewable energy, infrastructure, manufacturing, and healthcare.

Industrial applications often rely on step-down dry-type transformers to safely power automation systems, production lines, and machinery. In the oil and gas industry, rectifier transformers, used in conjunction with rectifier systems, are commonly used for AC drives and motor systems requiring reliable AC-to-DC power conversion.

In data centers, our transformers and PDU services ensure consistent voltage regulation and efficient power distribution for seamless operations. They also offer protection from electrical noise and ground loops for sensitive IT equipment.

Commercial applications include office towers, retail complexes, and hospitals. These facilities use distribution transformers to power HVAC systems, lighting, and elevators. Laboratories and hospitals in particular depend on low-noise isolation transformers that offer reliability for functions such as imaging and diagnostic systems.

In renewable energy applications, step-up transformers connect wind and solar installations to medium voltage-distribution networks, ensuring the export of generated power to the electrical grid.

MGM Transformers’ broad product range supports every sector from renewable energy and healthcare to telecommunications and transportation, providing reliable power solutions tailored for each environment.

How to Choose the Right Transformer

Selecting the right transformer involves considering technical, environmental, and regulatory requirements:

Voltage and Power Rating: Match the primary and secondary voltages and make sure the transformer’s kVA rating meets or exceeds the connected load.
Application Environment: Choose liquid-immersed for outdoor or high-load settings, and dry-type transformers for indoor or fire-sensitive environments.
Cooling and Ventilation: Consider airflow availability and ambient temperature, as these are vital for performance. Limited ventilation or high ambient heat requires transformer derating to prevent overheating.
Efficiency Standards: Ensure compliance with the DOE 2016 efficiency standards or NEMA TP-1 for older installations.
Safety and Reliability: For mission-critical environments such as hospitals, data centers, or manufacturing plants, opt for transformer units that are UL-listed, CSA-certified, and IEEE-tested to ensure high standards of safety and reliability.

Easily build a Request for Quote (RFQ) through MGM Transformers’ online quote tool.

Conclusion

Transformers are the backbone of America’s power infrastructure. They play a crucial role at every stage of efficient, safe electricity delivery. Understanding the different types of transformers helps engineers and facility managers make informed decisions.

Learn more about how MGM Transformers supports America’s energy future: Contact MGM Transformers now to explore custom-engineered transformer solutions.

FAQs

1. What are the main types of transformers used in power systems?

The main types of transformers are power transformers, distribution transformers, and special-purpose transformers such as isolation transformers, autotransformers, and instrument transformers. Each serves a distinct function: power transformers handle high-voltage transmission; distribution transformers deliver power locally, and special-purpose units provide protection, voltage control, or measurement.

2. What is the difference between dry-type and liquid-immersed transformers?

Dry-type transformers use air or resin for cooling, making them safer and better suited for indoor environments such as hospitals, offices, and data centers. Liquid-immersed transformers use mineral or ester-based oil for superior heat dissipation and are typically installed outdoors or in utility substations. Both designs meet DOE efficiency standards, but dry-type transformers require less maintenance and have a lower fire risk.

3. Which transformer type is best for industrial applications?

Industrial operations often use dry-type step-down transformers to safely power machinery, automation systems, and production lines. However, rectifier transformers are vital in applications that require DC current, such as welding, electrolysis, or drive systems. The best choice depends on factors like load size, voltage level, and environmental conditions.

4. How do I determine the correct transformer size for my facility?

Start by calculating the total connected load (in kVA), then add a 20–25% safety margin. Make sure the transformer’s primary and secondary voltages match your system requirements. Consider environmental factors such as ambient temperature, altitude, and airflow, which all affect transformer performance. Consulting with a qualified manufacturer like MGM Transformers ensures the correct sizing, regulatory compliance, and long-term reliability.
